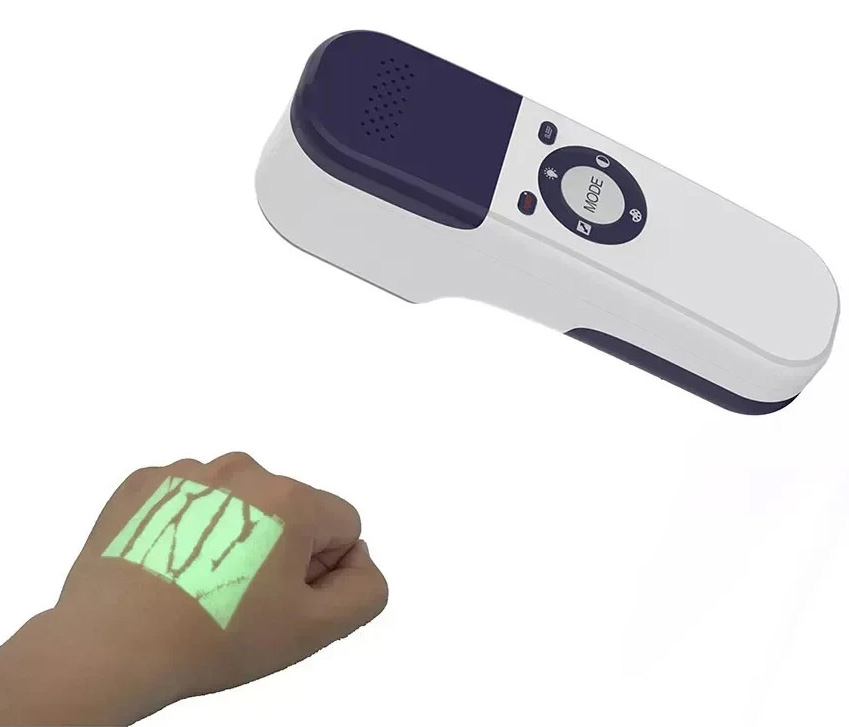

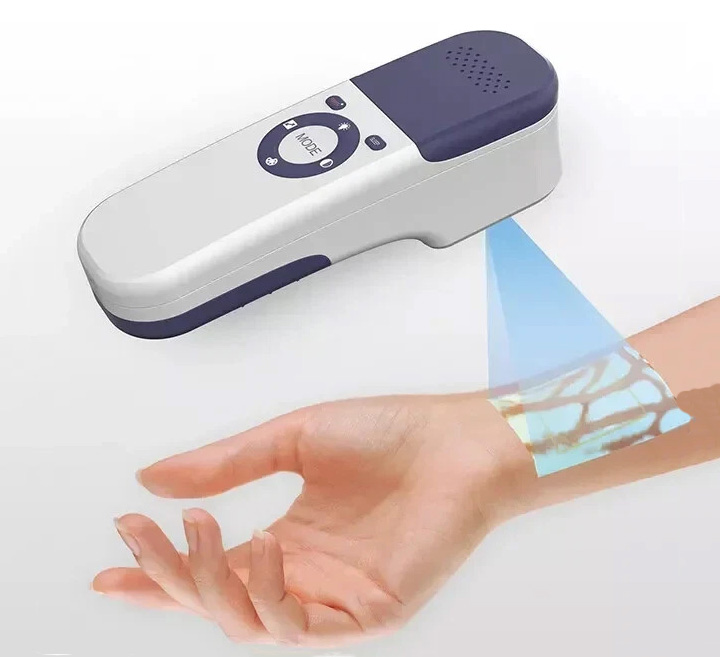

The QV-500 is a portable vein imaging device. It projects a real-time map of subcutaneous blood vessels onto the skin surface. The ergonomic housing is designed for handheld use; an optional desktop stand or mobile cart is available for different clinical settings.

The device assists in locating veins on patients with various skin tones, body types, or hair coverage. It can also be used to assess superficial varicose veins and avoid closed or branched vessels.


Features:

7 selectable colors for different skin tones or backgrounds.

3 projection sizes: adult, pediatric, and neonatal.

5 brightness levels.

Inversion mode to reduce hair interference.

Enhancement mode for improved vessel clarity.

Sleep mode for short pauses; quick wake‑up.


Technical Parameters

Infrared detection depth: 8 mm.

Optimal working distance: 15–25 cm.

Vessel‑position accuracy: 0.5 mm.

Vessel‑resolution accuracy: 0.5 mm.

Operating noise: <40 dB.

Battery‑level indicator displayed above the projected image.

Low‑battery alert.

Battery: Panasonic 3400 mAh rechargeable lithium (approx. 3 hours continuous use).

Projection technology: DLP.

Charger input: AC 100‑240 V, 50/60 Hz; output: DC 5 V, 2.0 A.

Weight: 280 g.

Dimensions: 20 × 6 × 6.5 cm.
